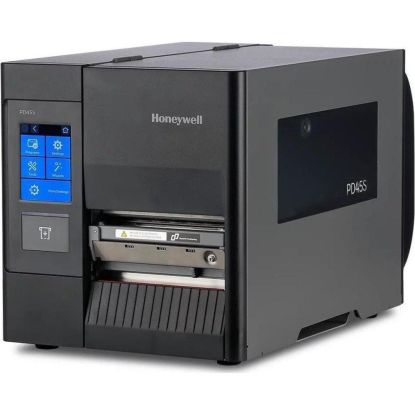

Honeywell PD45S

£808.79£1,132.79 Incl. VAT


The PD45S Honeywell’s new commercial grade industrial printer, is suited for manufacturing, retail, logistics, health care, and government applications. With Honeywell print platform, PD45S can be alternative to the competing printers in the market.


OverviewApplicationsService ContractsTechnical Details

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.

The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.

Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.

The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

  • Courier
  • Retail
  • Hospitality
  • Healthcare
  • Transportation
We offer a select range of service contracts. These are priced individually for each machine and details and availability may vary. Please contact us for more information and pricing.

  • 203pdi / 300dpi
  • USB & Ethernet
  • Thermal Direct & Thermal Transfer
  • Keyed LCD Screen or Optional Touch LCD Screen
  • Printing speed: 203 dpi: 50 – 250 mm/s (2-10 ips)  300 dpi: 50 – 200 mm/s (2-8 ips)
  • Maximum width: 203 dpi: 108 mm (4.25 inches) 300 dpi: 105.7 mm (4.16 inches)
  • Maximum Continuous Print Length: 203 dpi: 4.8 m (15.75 inches) 300 dpi: 2.2 m (7.22 inches)
  • Maximum/minimum width (label and liner): 114/20 mm (4.5/0.79 in)
  • Thickness (label and liner): 3 mil to 10 mil (0.076mm to 0.255mm)
  • Configuration: External roll paper or folding paper
  • Maximum diameter of label roll: 203.2 mm (8.0 inches)
  • Media Types: Non-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper
  • Dimensions (L x H x W): L: 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
  • Weight: 9.34Kg (20.59lbs)

Additional information


PD45S0C0010000200, PD45S0C0010000300, PD45S0C0010020200, PD45S0C0010020300, PD45S0F0010000200, PD45S0F0010000300, PD45S0F0010020200, PD45S0F0010020300
